Centrodyne Silent 620
Centrodyne Silent 620

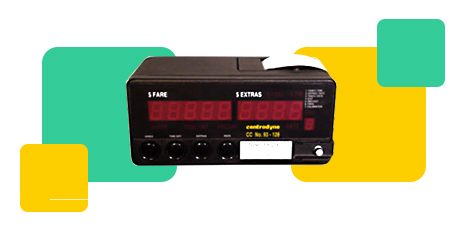

The "Silent 620" taximeter is a fully integrated printing taximeter that can be programmed with "EaseLink" Centrodyne's proprietary firmware for an easy interface with most computerized dispatch systems.
Optional credit card swipe, and GPS are also integrable.
The thermal printer head in this model (16 characters/line) is capable of a printing speed of 19.2 characters/sec or 1.2 lines/sec. The printer paper is 38mm wide standard calculator thermal paper.
Operating temperature: -30°C to 70°C (-22°Fto 158°F)
Power: 9 - 16V DC (nominal) 20V DC max. (short-term)
Dimensions: 158mm x 71.75mm x 36.6mm(6.22" x2.82" x 1.44")
Silent 620 FEATURES
☻ "EaseLink"Centrodyne's proprietary firmware interface.
☻ Self-programmable fare structure. ☻ Automatic calibration. ☻ Rate lock-out when hired.
☻ Programmable tax rate. ☻ Fare and tax totals display. ☻ Fare inhibit above speed threshold.
☻ Four(4) independent rates. ☻ Auto-rate change based on fare, distance, and time of day.
☻ Additional relay drivers output for roof lights. ☻ Programmable display time-out.
☻ Seven(7) digits statistics display. ☻ Daily erasable statistics. ☻ Password protection.
☻ RS232 communication port. ☻ Signal divider/amplifier included.
☻ Sensors: electronic, magnetic or mechanical.
☻ Displays rate digit: 7-segment LED.
☻ Mounting: in, on or against vehicle dashboard.
INSTALLING A TAXIMETER MIGHT REQUIRE TO USE THE FOLLOWING ACCESSORIES. MORE INFO HERE.
The "Vehicle Speed Signal (VSS) Divider" unit receives the speed signal from the vehicle speed sensor and converts it to a train of pulses readable by the taximeter, on board computer, etc. The interfacing process is achieved through an electronic circuit that provides a square wave output signal of 5.0 volt and selectable divide ratios of 1, 2, 4 and 8. The divide by 1 ratio can be used to re-shape a weak signal.
Other features of the VSS are:
Selectable divide ratios.
Reshape weak signals to a 5 V square wave signal.
Can't find a VSS signal? Plug the Z059 into the OBD plug on any CAN vehicle and your installation is complete.
Please note that generally, vehicles made after 2008 may use the CAN only version. The CAN/ISO unit is intended for use only in older, pre 2008, Asian model vehicles (Toyota, Honda, Nissan, etc.). If you are not sure which model your vehicle requires, please contact us.
Box of 100 Thermal paper rolls for Centrodyne S620, S700 and Pulsar 2030R taximeters.
100 Rolls, 38mm x 14.6 Meters each
Box weight: 7 Lb
