A TAXIMETER IS A MONEY MACHINE.

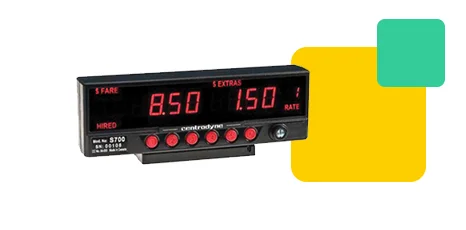

Centrodyne S700
from 249.00

Centrodyne’s newest slim line taximeter, "S700", features a 6 P/B interface, even more vivid display, day/night adjustable intensity, all on a single PCB, packaged in a sleek designer’s case. This new series presents a completely new design, while continuing to uphold Centrodyne’s tradition of developing quality products. The S700 provides a wide range of end-user options.

Some of the more outstanding characteristics of the S700 are:

Communications and cable options:
Relay to activate rooflight:
Quantity:
Add To Cart
CENTRODYNE S700 + S170 PRINTER COMBO
350.00

Centrodyne’s newest slim line taximeter, "S700", features a 6 P/B interface, even more vivid display, day/night adjustable intensity, all on a single PCB, packaged in a sleek designer’s case. This new series presents a completely new design, while continuing to uphold Centrodyne’s tradition of developing quality products. The S700 provides a wide range of end-user options.


Some of the more outstanding characteristics of the S700 are:

  • A Single Printed Circuit Board
  • Display Brightness Control
  • 6 Illuminated Push Buttons
  • Add/Subtract Extras
  • 16 Rates Standard
  • Flat Rate Entry
  • Auto Rate Changes
  • Speed Limit Programmable
  • 3 Level Password Security
  • Small (6.29" x 1.97" x 1.19")
  • Lightweight (less than 5 ounces)
  • Communication via: Bluetooth, USB or RS232
  • Web Based Updates, Rate Changes
  • Electronic Sealing of Installation (ESI)
  • View/Print Rates, Configuration
  • Daily & Total Statistics
  • Trip Data Memory Storage
  • Calibration Check
  • Available Plug-In Installation (if ordered and pre-wired with a Z059)
  • Plug & Play Add On Features (plug in printers, swipe, etc)


S170 Printer

Centrodyne’s industry leading S700 taximeter is now available with our new integrated S170 printer to provide an “all in one” taximeter and printer solution. Coupled with the meter’s long list of features the S170 printer’s features provide the most versatile printing taximeter available.

  • Large standard 2 ¼” paper roll (50’ long)
  • High speed thermal printing
  • Clamshell” paper loading – simply drop in paper roll and close cover
  • Unique mounting plate integrates the meter and printer into one
  • Modular design for ease of service
  • Full graphics capabilities. Prints your company logo
  • Bluetooth, RS232, etc. communications for external devices (terminals, apps, etc.) to print as desired
  • Multi-language ready. Print in English, Spanish or French
  • 24 or 32 column printing
  • Extremely affordable competitive pricing
  • Backed by Centrodyne’s superior quality, design, service and customer support
Quantity:
Add To Cart

TAXÍMETRO / TAXIMETER / TAXIMÈTRE / TAKSIMETRO

The Taximeter word was first coined from Medieval Latin taxa (“tax, charge), from Proto-Indo-European base *tag- (to touch, to handle), and it is what gives the word Taxi its meaning.

PULSAR TAXIMETER 2030
245.00

The Pulsar 2030 features a bright display and simple operation.  The meter can be interfaced with automobile electronics or older transducer systems via an external module called a "Sendiv" that allows conditioning and dividing functions without opening the meter's shell for adjustment setting. It makes the vehicle's information source and the meter's computer talk to each other properly.



Quantity:
Add To Cart
Pulsar Taximeter 2030R
345.00

The 2030's Taximeter are unmatched for their reliability and superior design, and yet they are priced for the for the smallest budget.

The Pulsar 2030R features a bright display a fast thermal printer and simple operation. The meter can be interfaced with automobile electronics or older transducer systems via an external module called a "Sendiv" that allows conditioning and dividing functions without opening the meter's shell for adjustment setting. It makes the vehicle's information source and the meter's computer talk to each other properly.



Quantity:
Add To Cart

TASSAMETRO /  ТАКСОМЕТР / タクシーメーター / TAXAMETER

Centrodyne Silent 610
275.00 280.00

The "Silent 610" is the most rugged and reliable meter on the market today. With 10+ years of road service and over 100,000 installed units the S610 has earned its reputation from the frozen Alaskan tundra to the scorching desert of Nevada. Most of the largest fleets across North America rely upon Centrodyne’s quality products and unrivaled customer service to help keep their operation running worry-free. Whether you require one meter or one thousand you can benefit from the peace of mind that comes with owning a Centrodyne Silent 600 series taximeter.

Specifications:

Dimensions:  158mm x 71.75mm x 36.6mm  (6.22" x 2.82" x 1.44")

Displays rate digit:  7-segment LED

Mounting:  in, on or against vehicle dashboard

Operating temperature:  -30°C to 70°C (-22°F to 158°F)

Power:  9 - 16V DC (nominal) 20V DC max. (short term)

Quantity:
Add To Cart
Centrodyne Silent 620
365.00

The "Silent 620" taximeter is a fully integrated printing taximeter that can be programmed with "EaseLink" Centrodyne's proprietary firmware for an easy interface with most computerized dispatch systems.

Optional credit card swipe, and GPS are also integrable.

The thermal printer head in this model (16 characters/line) is capable of a printing speed of 19.2 characters/sec or 1.2 lines/sec. The printer paper is 38mm wide standard calculator thermal paper.



Specifications:

Operating temperature: -30°C to 70°C (-22°Fto 158°F)

Power: 9 - 16V DC (nominal) 20V DC max. (short-term)

Dimensions: 158mm x 71.75mm x 36.6mm(6.22" x2.82" x 1.44")

Add To Cart

Understanding a Taximeter installation

To connect a taximeter you need power (+12Volt Battery), ground and the VSS wire.

Vehicle Speed Sensor (VSS)

The vehicle speed sensor, or VSS wire is normally a part of a vehicle's speedometer array.

The VSS wire is used by the vehicle's cruise control to determine the vehicle's speed and it sends a series of pulses, anywhere from 800 to just over 1,000 per mile, and sends these pulses only when the car is in motion.

A Pulse Divider enhance the signal, and it is required when the VSS pulses are to high or too low for the taximeter to read accurate.

If the VSS wire is not hooked up, then the taximeter will not realize that the car is moving at all, and will be unable to track distance.

To find the VSS wire in your car, you can either refer to your car documentation,  visit your electric-mechanic garage or ideally your town's meter shop.

Alternatively, VSS signals can be read from the OBD port directly from your car's computer using an OBD-VSS device.

Centrodyne Vehicle Speed Signal Divider Y060
38.00

The "Vehicle Speed Signal (VSS) Divider" unit receives the speed signal from the vehicle speed sensor and converts it to a train of pulses readable by the taximeter, on board computer, etc. The interfacing process is achieved through an electronic circuit that provides a square wave output signal of 5.0 volt and selectable divide ratios of 1, 2, 4 and 8. The divide by 1 ratio can be used to re-shape a weak signal.



Other features of the VSS are:

Simple installation.
Selectable divide ratios.
Reshape weak signals to a 5 V square wave signal.

Quantity:
Add To Cart
Centrodyne Z059 OBD - Vehicle Speed Sensor (OBD-VSS)
170.00

Can't find a VSS signal? Plug the Z059 into the OBD plug on any CAN vehicle and your installation is complete.

Please note that generally, vehicles made after 2008 may use the CAN only version. The CAN/ISO unit is intended for use only in older, pre 2008, Asian model vehicles (Toyota, Honda, Nissan, etc.). If you are not sure which model your vehicle requires, please contact us.

Version:
Quantity:
Add To Cart

taximeter extras



Centrodyne Taximeter Harness Y047
from 66.00

Vehicle harness for Centrodyne meters: 610, 620, 710. Available for diferent communications options.

Communication Port:
Quantity:
Add To Cart
Box of 100 Taximeter Thermal Paper Rolls
45.99

Box of 100 Thermal paper rolls for Centrodyne S620, S700 and Pulsar 2030R taximeters.


Product Details:


100 Rolls, 38mm x 14.6 Meters each

Box weight: 7 Lb

Quantity:
Add To Cart
